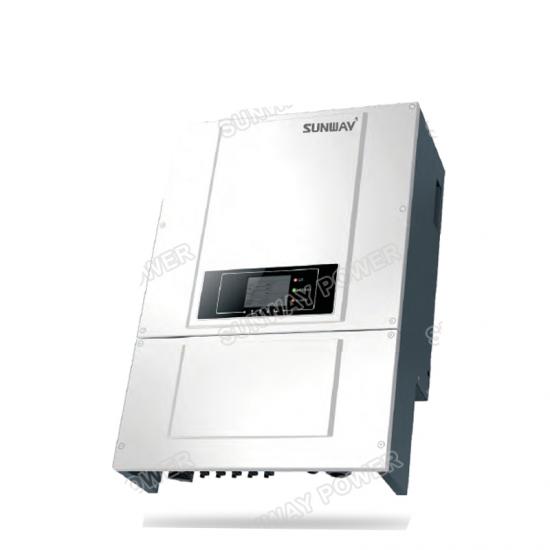

30kw-40KW太陽能并網逆變器逆變器電力系統特性
高收益
最大97.2%的效率
實時翻譯精確MPPT算法最大收獲
寬輸入電壓范圍操作
所有在一個。靈活、經濟的系統解決方案
免費網站選擇由于IP65
容易安裝和維護由于“插入和運行”連接
接口selection-Wi-Fi / RS485 / GPRS
4”液晶顯示器
低維護成本
可拆卸蓋,便于安裝
不銹的鋁蓋
靈活的監控解決方案
多功能繼電器可以配置為顯示各種逆變器信息
智能電網管理
無功功率的能力
自我權力減速器時頻率
遠程主動/無功功率極限控制
|
Datasheet
|
30000TL
|
36000TL
|
40000TL
|
|
Input(DC)
|
|||
|
Max.Input power
|
33000W
|
40000W
|
44000W
|
|
Max DC power for single MPPT
|
15360W(480V-800V)
|
20400W(500V-800V)
|
20400W(500V-800V)
|
|
Number of independent MPPT
|
2
|
||
|
Number of DC inputs
|
4 for each MPPT
|
||
|
Max. input voltage
|
1000V
|
||
|
Start-up input voltage
|
350V
|
||
|
Rated input voltage
|
600V
|
600V
|
700V
|
|
Mppt voltage range
|
250V-960V
|
||
|
Full load DC voltage range
|
480V-800V
|
5000V-800V
|
570V-800V
|
|
Max. input current per MPPT
|
64A(32A/32A)
|
76A(38A/38A)
|
70A(35A/35A)
|
|
Input short circuit current for each MPPT
|
12A
|
||
|
Output(AC)
|
|||
|
Rated power(@230V,50Hz)
|
30000W
|
36000W
|
40000W
|
|
Max.AC power
|
30000VA
|
36000VA
|
40000VA
|
|
Max.output current
|
43A
|
54A
|
48A
|
|
Normal Grid Voltage
|
3/N/PE or 3/PE,230/400 Vac
|
||
|
Grid Voltage Range
|
310Vac-480Vac
|
||
|
Normal Frequency
|
50/60Hz
|
||
|
Grid frequency range
|
47-53/57-63Hz(According to local standard)
|
||
|
Active power adjustable range
|
0-100%
|
||
|
THDi
|
<3%
|
||
|
Power factor
|
1(Adjustable +/-0.8)
|
||
|
Performance
|
|||
|
Max efficiency
|
98.50%
|
98.50%
|
98.50%
|
|
Weighted eff.(EU/CEC)
|
98.20%
|
98.20%
|
98.20%
|
|
Self-consumption at night
|
<1W
|
||
|
Feed-in start power
|
45W
|
||
|
MPPT efficiency
|
>99.9%
|
||
|
Protection
|
|||
|
DC reverse polarity protection
|
Yes
|
||
|
DC switch
|
Yes
|
||
|
Protection class/overvoltage category
|
Ⅰ/Ⅲ
|
||
|
Input/output SPD(Ⅱ)
|
Optional
|
||
|
Safety protection
|
Anti islanding,RCMU,Ground fault monitoring
|
||
|
Certification
|
IEC 62116,IEC61727,IEC61683,IEC60068(1,2,14,30),
IEC62109-1/2 CE,CGC,AS4777,AS3100,VDE4105,C10-C11,G59(more available on request)
|
||
|
SPD
|
MOV:TypeⅢ standard/TypeⅡ(optional)
|
||
|
ARPC
|
Anti Reverse Power Controller(optional)
|
||
|
Communication
|
|||
|
power management unit
|
According to certification and request
|
||
|
Standard Communication Mode
|
RS485,Wifi(optional),GPRS(optional),SD card, Multi-function relay
|
||
|
Operation Data Storage
|
25 years
|
||
|
General Data
|
|||
|
Ambient temperature range
|
-25℃...+60℃
|
||
|
Topology
|
Transformerless
|
||
|
Degree of protection
|
IP65
|
||
|
Allowable relative humidity range
|
0...100% no condensing
|
||
|
Max.operating altitude
|
3000m
|
||
|
Noise
|
<30dB
|
<45dB
|
<45dB
|
|
Weight
|
50kg
|
||
|
Cooling
|
Natural
|
Fan
|
Fan
|
|
Dimension
|
767*564*290.5mm
|
||
|
Display
|
LCD display
|
||
|
Warranty
|
5 years/7 years/10 years
|
||
