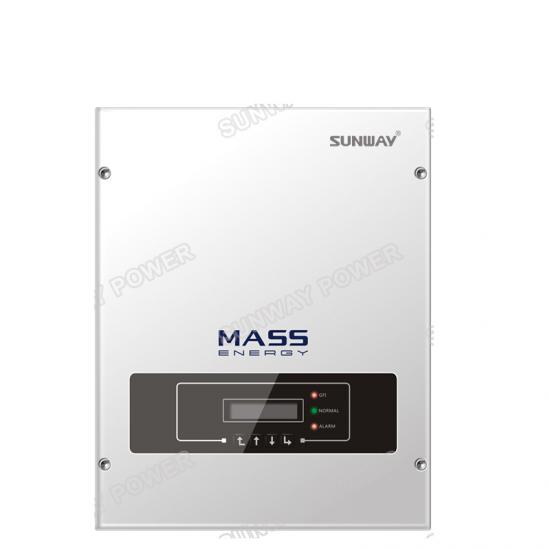

3-6KW網格太陽能逆變器的特性
高收益
最大97.2%的效率
實時翻譯精確MPPT算法最大收獲
寬輸入電壓范圍操作
所有在一個。靈活、經濟的系統解決方案
免費網站選擇由于IP65
容易安裝和維護由于“插入和運行”連接
接口selection-Wi-Fi / RS485 / GPRS
4”液晶顯示器
低維護成本
可拆卸蓋,便于安裝
不銹的鋁蓋
靈活的監控解決方案
多功能繼電器可以配置為顯示各種逆變器信息
智能電網管理
無功功率的能力
自我權力減速器時頻率
遠程主動/無功功率極限控制
|
Datasheet
|
3KTLM-G2
|
5KTLM-G2
|
6KTLM-G2
|
|
Input(DC)
|
|||
|
Max.Input power
|
3500W
|
5500W
|
6600W
|
|
Max DC power for single MPPT
|
2000W(160V-520V)
|
3500W(300V-520V)
|
|
|
Number of independent MPPT
|
2
|
||
|
Number of DC inputs
|
1/1
|
||
|
Max.input voltage
|
600V
|
||
|
Start-up input voltage
|
120V
|
||
|
Rated input voltage
|
360V
|
||
|
Mppt voltage range
|
90V-580V
|
||
|
Full load DC voltage range
|
200V-520V
|
250V-520V
|
300V-520V
|
|
Max.input current per MPPT
|
11A/11A
|
||
|
Output(AC)
|
|||
|
Rated power
|
3000W
|
5000W
|
6000W
|
|
Max.AC power
|
3000VA
|
5000VA
|
6000VA
|
|
Max.output current
|
13.7A
|
22.8A
|
27.3A
|
|
Nominal Grid Voltage
|
L/N/PE,220,230,240
|
||
|
Grid Voltage Range
|
180~276V(According to local standard)
|
||
|
Nominal Frequency range
|
50/60Hz
|
||
|
Grid frequency range
|
47~55/54~66Hz(According to local standard)
|
||
|
Active power adjustable range
|
0~100%
|
||
|
THDi
|
<3%
|
||
|
Power factor
|
1(adjustable+/-0.8)
|
||
|
Power Limit export
|
Zero export or adjustable power limit export
|
||
|
Performance
|
|||
|
Max.efficiency
|
98%
|
||
|
Weighted eff.(EU/CEC)
|
97.5%
|
||
|
Self-consumption at night
|
<1W
|
||
|
Feed-in start power
|
50W
|
||
|
Mppt efficiency
|
>99.9%
|
||
|
Protection
|
|||
|
DC reverse polarity protection
|
Yes
|
||
|
DC switch
|
optional
|
||
|
Protection class/overvoltage category
|
I/III
|
||
|
Input/output MOV(III)
|
Yes
|
||
|
Safety protection
|
Anti islanding,RCMU,Ground fault monitoring
|
||
|
Certification
|
NB/T32004-2013,AS4777,VDE0126-1-1,G83/2,G59/3,C10/11,
RD1699/UTEC15-712-1,EN50438,VDE-AR-N4105 IEC 62116,IEC 61727,IEC 61683,IEC 60068(1,2,14,30),IEC 62109-1/2 |
||
|
SPD
|
MOV:Type III standard
|
||
|
Comunication
|
|||
|
Power management unit
|
According to certification and request
|
||
|
Standard Communication Mode
|
RS485,Wifi/GPRS(optional),SD card
|
||
|
Operation Data Storage
|
25 years
|
||
|
General data
|
|||
|
Ambient temperature range
|
-25°C~+60°C
|
||
|
Topology
|
Transformerless
|
||
|
Degree of protection
|
IP65
|
||
|
Allowable relative humidity range
|
0...100% no condensing
|
||
|
Max.operating altitude
|
4000m
|
||
|
Noise
|
<25dB
|
||
|
Weight
|
11.5kg
|
||
|
Cooling
|
Natural convection
|
||
|
Dimension
|
405*315*135mm
|
||
|
Display
|
LCD display
|
||
|
Warranty
|
5 years / 7 years / 10 years
|
||
